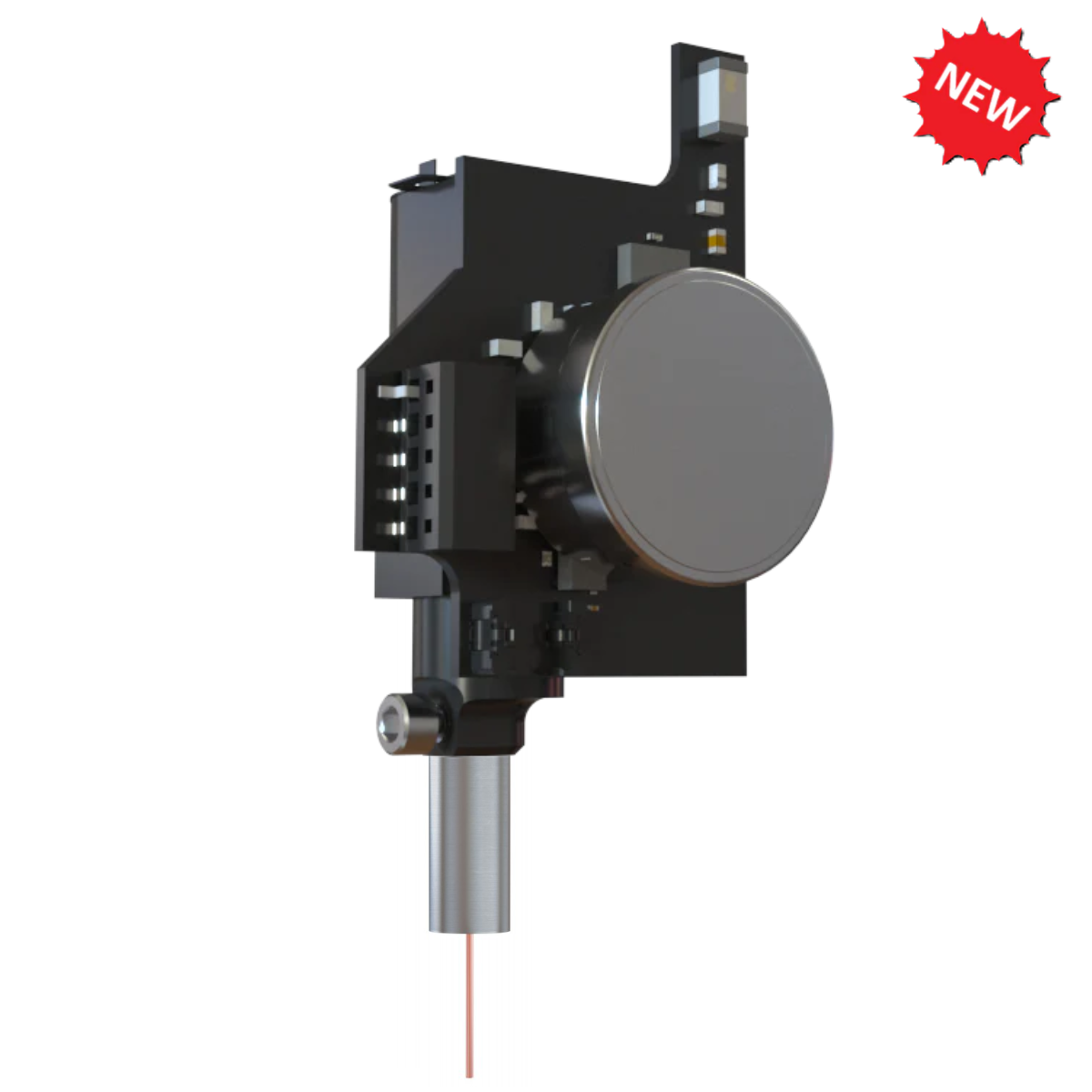

The wireless fiber photometry headstage is a lightweight, wearable device that wirelessly transmits data from its low-consumption photodetector. It is designed for single-site recordings of green or red indicators with two excitations; isosbestic (405 or 415 nm) and functional (470 or 560 nm). The headstage transmits data in real-time to the base station, at up to 2 meters away. The standard version includes a 0.8-1.55 grams rechargeable battery that lasts 1-4 hours* and is compatible with 2.5 mm ferrules cannulas.
In addition to the fiber photometry recording, the headstage provides information on the acceleration with an embedded inertial measurement unit (IMU).
| Battery A | Battery B | |
| Battery life (@25% LED power) | 4h | 1.5h |
| Battery life (@100% LED power) | 2h | 1h |
| Headstage with battery | 4.44 g | 3.68 g |
- 25% LED Power: 405 nm @ 19 µW; 470nm @ 43 µW
- 100% LED Power: 405 nm @ 80 µW; 470 nm @ 120 µW
| Headstage Range | 2 meters |
| Battery Duration | 1 - 4 hours depending on battery type |
| Wireless Frequency Band | 2.4 - 2.5 GHz |
| Maximum LED Power (lockin) (fibre 400 µm) |
405 / 415 nm = 80 µW |
| 470 nm = 120 µW | |
| 560 nm = 20 µW | |
| Detector Sensitivity @ 520 nm | 0.48 V / nW |
| Saturation level | ~ 6 nW |
| Detector Bandwidth | 0 - 500 Hz |
| ADC Resolution |
14 bits |
| ADC Sampling Rate | 10 kHz |
| Dimensions | 19.3 x 7.5 x 29 mm |
| Mass | 3.68 - 4.44 g (depending on battery type) |
-
The wireless fiber photometry headstage is a lightweight, wearable device that wirelessly transmits data from its low-consumption photodetector. It is designed for single-site recordings of green or red indicators with two excitations; isosbestic (405 or 415 nm) and functional (470 or 560 nm). The headstage transmits data in real-time to the base station, at up to 2 meters away. The standard version includes a 0.8-1.55 grams rechargeable battery that lasts 1-4 hours* and is compatible with 2.5 mm ferrules cannulas.
In addition to the fiber photometry recording, the headstage provides information on the acceleration with an embedded inertial measurement unit (IMU).Battery A Battery B Battery life (@25% LED power) 4h 1.5h Battery life (@100% LED power) 2h 1h Headstage with battery 4.44 g 3.68 g - 25% LED Power: 405 nm @ 19 µW; 470nm @ 43 µW
- 100% LED Power: 405 nm @ 80 µW; 470 nm @ 120 µW
-
Headstage Range 2 meters Battery Duration 1 - 4 hours depending on battery type Wireless Frequency Band 2.4 - 2.5 GHz Maximum LED Power (lockin)
(fibre 400 µm)405 / 415 nm = 80 µW 470 nm = 120 µW 560 nm = 20 µW Detector Sensitivity @ 520 nm 0.48 V / nW Saturation level ~ 6 nW Detector Bandwidth 0 - 500 Hz ADC Resolution 14 bits ADC Sampling Rate 10 kHz Dimensions 19.3 x 7.5 x 29 mm Mass 3.68 - 4.44 g (depending on battery type)
-

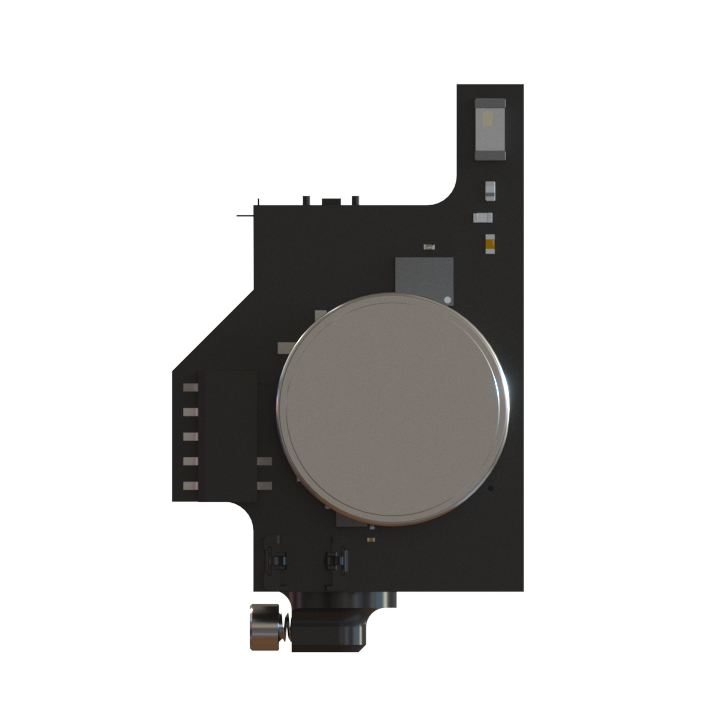

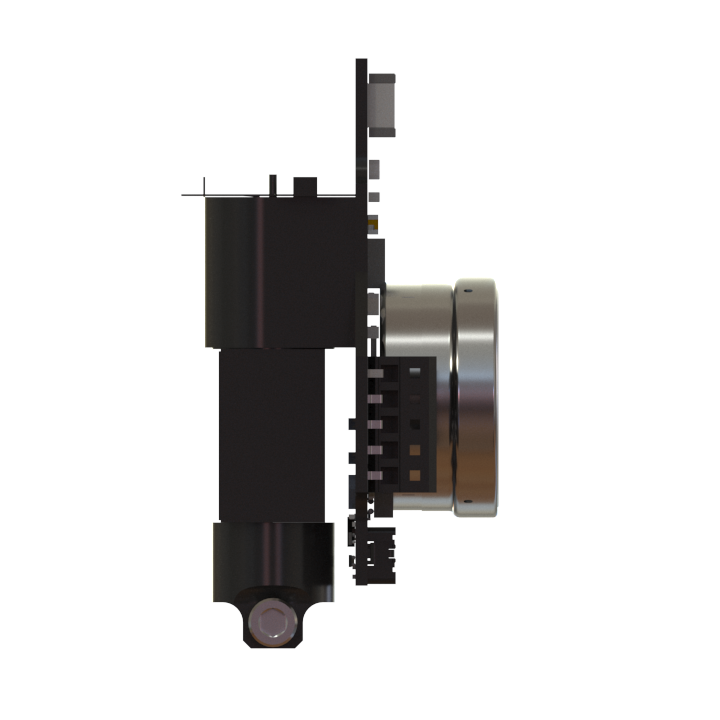

Drawing Wireless Photometry Headstage
