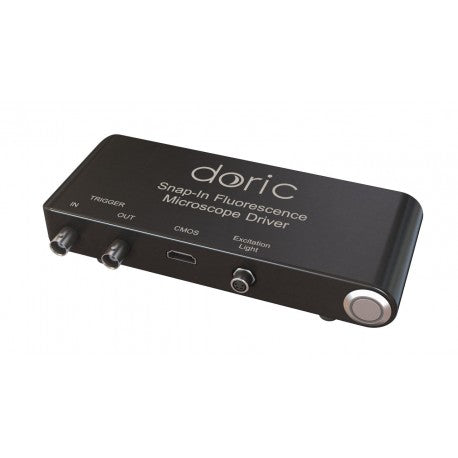

Fluorescence Microscope Driver
Fluorescence Microscope Driver
Voici une description courte popur vouir ce que ca donne seulement... Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor
This driver is used to control the following Miniaturized Microscope Bodies :
• Twist-on efocus Fluorescence Microscope Bodies
• Snap-in Surface Fluorescence Microscope Bodies
• Snap-in Deep brain Fluorescence Microscope Bodies (SFMB, OSFM).
The driver can control the excitation of the LED light source, the image capturing and its broadcast at video rate via a high-speed Ethernet communication and the Doric Neuroscience Studio software. Trigger IN/OUT BNC ports can be used to trigger or synchronize the microscope with external recording devices, or trigger other devices. The available ports are the following:
• 1 Digital input TTL (BNC connector)
• 1 Digital output TTL (BNC connector)
• 1 Microscope port (HDMI)
• 1 LED connector (M8)
• Ethernet port for computer connection
| Dimensions |
186 x 90 x 32 mm |
| DC power supply |
12 VDC |
| Data Link | Ethernet |
| Weight |
379 g |
| Computer requirements |
Desktop Computer recommended, Intel Core-i7, 8 GB RAM, Gigabit Ethernet and Jumbo frame compatible, Graphic card with 2 GB memory and OpenGL v4.6 compatible |
-
This driver is used to control the following Miniaturized Microscope Bodies :
• Twist-on efocus Fluorescence Microscope Bodies
• Snap-in Surface Fluorescence Microscope Bodies
• Snap-in Deep brain Fluorescence Microscope Bodies (SFMB, OSFM).The driver can control the excitation of the LED light source, the image capturing and its broadcast at video rate via a high-speed Ethernet communication and the Doric Neuroscience Studio software. Trigger IN/OUT BNC ports can be used to trigger or synchronize the microscope with external recording devices, or trigger other devices. The available ports are the following:
• 1 Digital input TTL (BNC connector)
• 1 Digital output TTL (BNC connector)
• 1 Microscope port (HDMI)
• 1 LED connector (M8)
• Ethernet port for computer connection
-
Dimensions
186 x 90 x 32 mm DC power supply
12 VDC Data Link Ethernet
Weight
379 g Computer requirements
Desktop Computer recommended, Intel Core-i7, 8 GB RAM, Gigabit Ethernet and Jumbo frame compatible, Graphic card with 2 GB memory and OpenGL v4.6 compatible -
Drawing Fluorescence Microscope Driver
User ManualFrEn Single-color Miniature Fluorescence Microscopy System
