Fluid Injector for Dual Optofluid Cannula with interchangeable injectors
Fluid Injector for Dual Optofluid Cannula with interchangeable injectors
Voici une description courte popur vouir ce que ca donne seulement... Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor
…generating

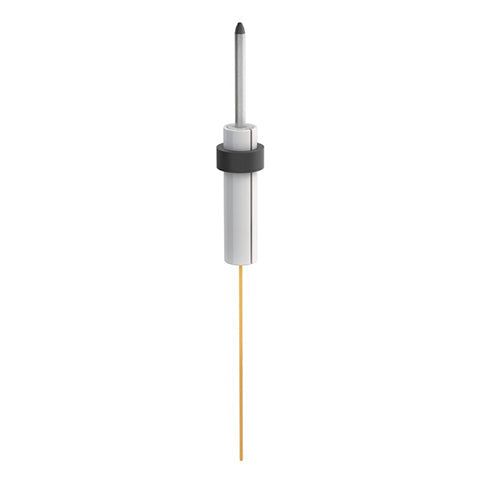

Fluid injectors are designed to use with Dual Optofluid Cannula with interchangeable injectors (DiOFC). Injector include a 1.25 mm sleeve to connect to DiOFC ferrule. Tube length should be precisely define according to the DiOFC tube length.
| Fluid Connector |
Stainless tube 485 µm OD (compatible with 25ga tubing) |
||
| Fluid Tubing ID | Glass | 100 µm inner diameter | |
| Polyimide | 140 µm inner diameter | ||
| Dead Volume | L |
Glass | 110 nL + 8 nL / mm fiber length |
| Polyimide | 210 nL + 15.4 nL / mm fiber length | ||
| S |
Glass | 170 nL + 8 nL / mm fiber length | |
| Polyimide | 330 nL + 15.4 nL / mm fiber length | ||
-
Fluid injectors are designed to use with Dual Optofluid Cannula with interchangeable injectors (DiOFC). Injector include a 1.25 mm sleeve to connect to DiOFC ferrule. Tube length should be precisely define according to the DiOFC tube length.
-
Fluid Connector Stainless tube 485 µm OD
(compatible with 25ga tubing)Fluid Tubing ID Glass 100 µm inner diameter Polyimide 140 µm inner diameter Dead Volume L
Glass 110 nL + 8 nL / mm fiber length Polyimide 210 nL + 15.4 nL / mm fiber length S
Glass 170 nL + 8 nL / mm fiber length Polyimide 330 nL + 15.4 nL / mm fiber length -

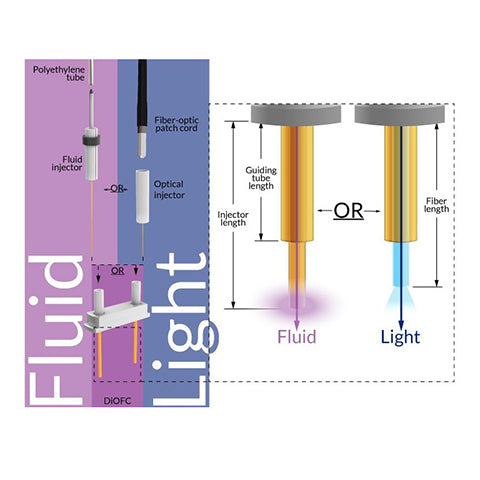

Drawing Fluid Injector for Dual Optofluid Cannula with interchangeable injectors
