Pigtailed 1x1 Fiber-optic Rotary Joint (OBSOLETE)
Pigtailed 1x1 Fiber-optic Rotary Joint (OBSOLETE)
Voici une description courte popur vouir ce que ca donne seulement... Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor
This product is replaced by Pigtailed 1x1 Fiber-optic Rotary Joint Gen.2

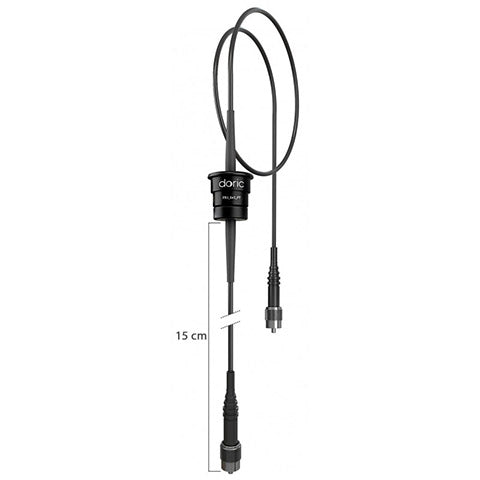

Fiber photometry experiments detect small power variations from a fluorophore and for that reason the fiber-optic rotary joints within the setup require minimal transmission variation. Because of large core multimode fibers and connector tolerances, transmission variation can only be minimized using a pigtailed version of 1x1 fiber-optic rotary joint. The pigtailed patch cords are made from 0.37 or 0.57 NA, 200 or 400 µm diameter optical fiber with a lightweight metal jacket and FC connectors. The fixed input patch cord measures between 1 and 2 meters in its standard version, while the output rotating patch cord is 0.15 meters long. Different length fiber-optic patch cords can be connected to the output using an FC/FC mating adapter.
Item includes :
- 1 Pigtailed 1x1 Fiber-optic Rotary Joint
Add optional items :

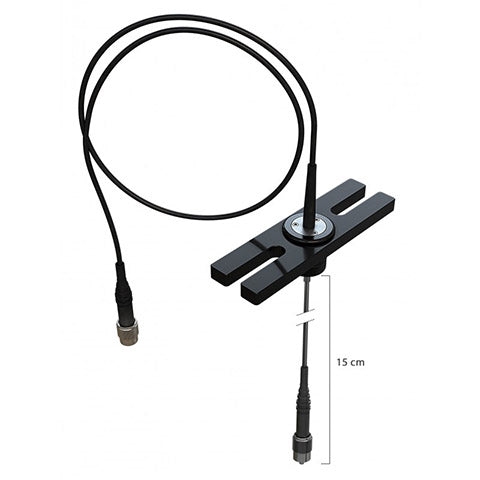

- compatible Holder

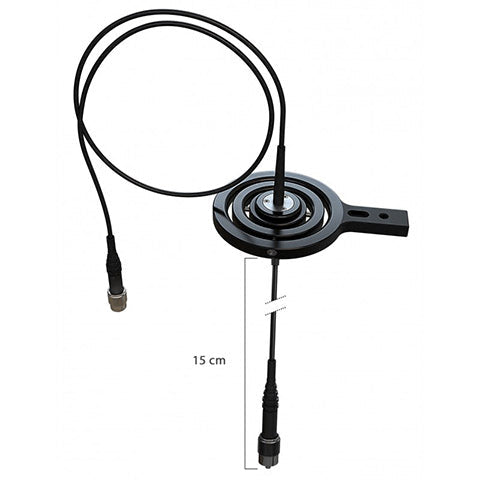

- Gimbal Holder for FRJ: allows pivoting the rotary joint along two additional axes, further reducing the mechanical stress on the animal.
- FC/FC adapters: used to connect different patch cords to the optical fibers already linked to the rotary joint.
| Maximum variation | < 1 % peak-to-peak (1-way) |
| Transmission | > 65 % (typical 70%) |
| Typical fiber configuration | 200 or 400 µm core - NA 0.37 or 0.57 |
| Optical fiber | stator : 1.0 to 2.0 meters (typical) with ARMO Black jacket rotor : 15 centimeters with PBKM jacket |
| Start up torque | 20 µN·m |
| Rotary joint body length | 20 mm |
| Outer Diameter | 17 mm |
| Mass | 18 g without optical fibers |
-
This product is replaced by Pigtailed 1x1 Fiber-optic Rotary Joint Gen.2
Fiber photometry experiments detect small power variations from a fluorophore and for that reason the fiber-optic rotary joints within the setup require minimal transmission variation. Because of large core multimode fibers and connector tolerances, transmission variation can only be minimized using a pigtailed version of 1x1 fiber-optic rotary joint. The pigtailed patch cords are made from 0.37 or 0.57 NA, 200 or 400 µm diameter optical fiber with a lightweight metal jacket and FC connectors. The fixed input patch cord measures between 1 and 2 meters in its standard version, while the output rotating patch cord is 0.15 meters long. Different length fiber-optic patch cords can be connected to the output using an FC/FC mating adapter.
Item includes :- 1 Pigtailed 1x1 Fiber-optic Rotary Joint
Add optional items :- compatible Holder
- Gimbal Holder for FRJ: allows pivoting the rotary joint along two additional axes, further reducing the mechanical stress on the animal.
- FC/FC adapters: used to connect different patch cords to the optical fibers already linked to the rotary joint.
-
Maximum variation < 1 % peak-to-peak (1-way) Transmission > 65 % (typical 70%) Typical fiber configuration 200 or 400 µm core - NA 0.37 or 0.57 Optical fiber stator : 1.0 to 2.0 meters (typical) with ARMO Black jacket
rotor : 15 centimeters with PBKM jacketStart up torque 20 µN·m Rotary joint body length 20 mm Outer Diameter 17 mm Mass 18 g without optical fibers -
Drawing Pigtailed 1x1 Fiber-optic Rotary Joint
User ManualFrEn 1x1 Fiber-optic Rotary Joint
