Connectorized LED with Fiber-optic Rotary Joint

Connectorized LED with Fiber-optic Rotary Joint

Voici une description courte popur vouir ce que ca donne seulement... Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor

…generating

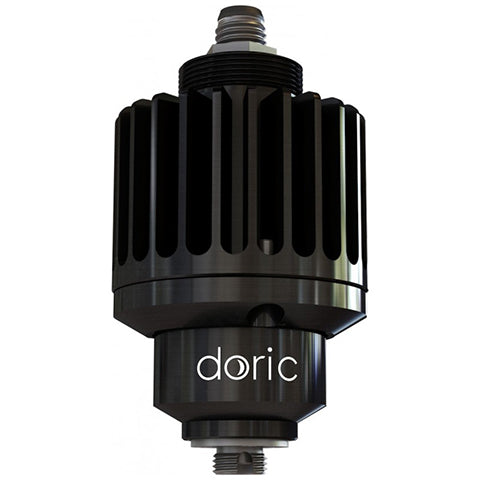

It is common to connect an LED with a rotary joint via a fiber-optic patch cord. However, the tips of the patch cord are usually not coated, and at least 8% of the light power is lost to the Fresnel reflections, in addition to other connection losses. Connectorized LED with Fiber-optic Rotary Joint or LEDFRJ eliminates one fiber-optic patch cord and related losses by integrating the LED source and the rotary joint into a single device. Its rotative optical fiber connection with practically zero starting torque allows free rotation of the optical fiber cable.

Notes:

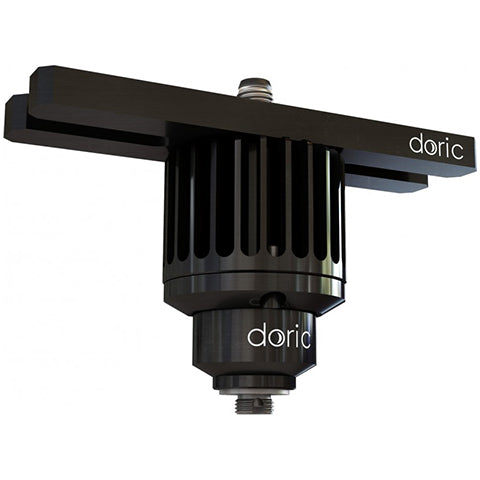

  • A compatible holder is included with the Connectorized LED + Fiber-optic Rotary Joint (Holder_FRJ_large).

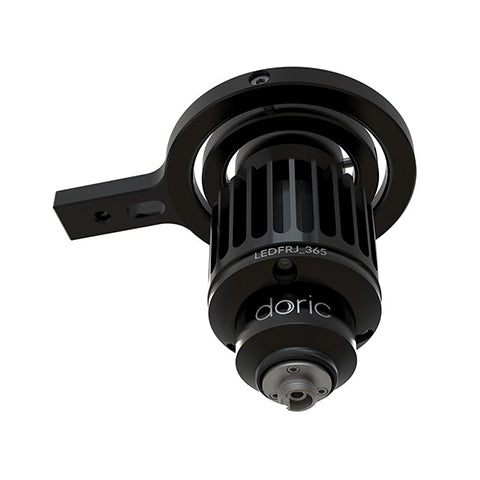

  • An optional gimbal holder allows pivoting the rotary joint along two additional axes, further reducing the mechanical stress on the animal (GH_FRJ).
  • A Connectorized LED with Fiber-optic Rotary Joint does not include the corresponding LED Driver.

Start up Torque

 < 20 µN·m
Optical Fiber Connector FC/PC
Optical Fiber Type
 Multimode
50 to 1500 µm core diameter
NA 0.22 to 0.66
Optical Power
 see power table
Max Input Current see power table
Electrical connection 1 meter long pigtailed cable M8 connector 4 pos - Male
M8 Pinout - Male
Dimensions 63 mm x 59 mm x 21 mm without cable, with baseplate
Mass 100 grams
Drawing

Connectorized LEDs with Fiber-optic Rotary Joint
Application NoteFrEn

LED Spectra
User ManualFrEn

LED Light Source
LED Typical Output Power
@ Max Current
[ mW ]

Central
Wavelength
[ nm ]		 Bandwidth
FWHM
[ nm ]		 Maximum
Current
[ mA ]		 200 µm
NA 0.57		 400 µm
NA 0.57		 960 µm
NA 0.63

365 ~ 12 500 4.0 12 75

385 ~ 12 500 6.0 25 100

405 ~ 12 500 5.0 20 90

415 ~ 15 500 5.5 23 100

450 ~ 22 1000 6.5 24 100

465 ~ 25 1000 8.0 30 140

490 ~ 25 350 1.0 5.0 25

505 ~ 30 1000 5.0 20 80

515 ~ 40 1000 3.0 8.0 30

560 ~ 100 700 5.0 20 85

595 ~ 15 1000 1.6 7.0 35

625 ~ 17 1000 3.5 14 70

635 ~ 20 1000 5.5 22 90

690 ~ 25 600 4.0 16 50

760 ~ 25 800 4.0 16 50

850 ~ 30 1000 6.0 22 40

940 ~ 35 1000 6.0 22 30

5500K - 1000 10 45
 200







updated 2023-12-06 - measured with Pronto-Si power meter
